PV Module (Double-Glass, POLY)

  DUAL-GLASS Design



  Class-A Fire-proof  Level



  Adopt Grade-A Solar Cell ONLY



  Zero PID & Water Permeability



  Superior 0.5% yearly Low Decaying Rate



  High System Voltage 1500V to reduce BOS cost

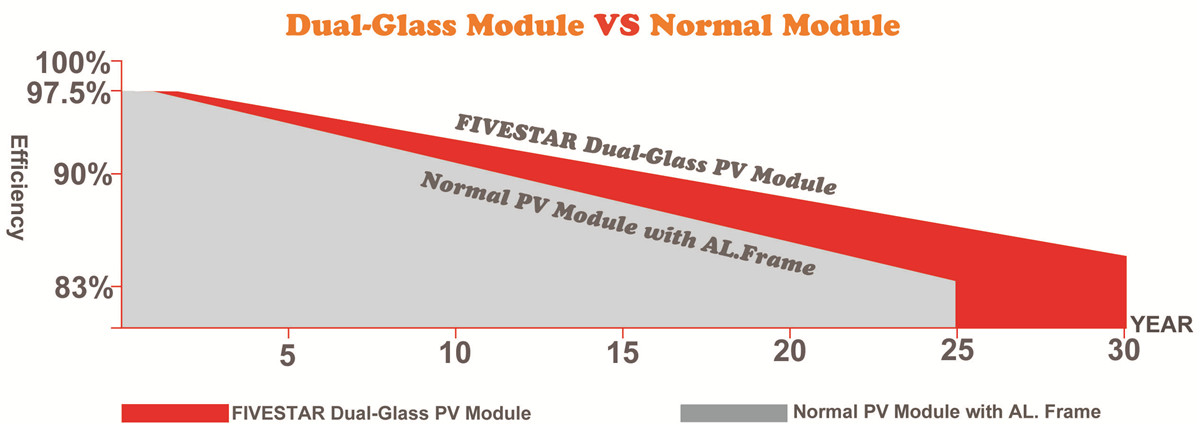

  30% more output throughout 30 YEAR Service Life

Inquiry Now
Share :
Details


SPECIFICATION SHEET



MODEL WXS-P60-270A WXS-P60-275A WXS-P60-280A WXS-P60-285A WXS-P72-320A WXS-P72-325A WXS-P72-330A WXS-P72-335A
Electrical Parameters Maximum Power            Pmax (W) 270 275 280 285 320 325 330 335
Maximum Power Voltage     Vmp (V) 31.2 31.4 31.6 31.8 37.4 37.6 37.8 38
Maximum Power Current      Imp(A) 8.65 8.76 8.86 8.96 8.56 8.64 8.73 8.82
Short Circuit Current     Isc (A) 9.29 9.38 9.46 9.54 9.17 9.24 9.33 9.41
Open Circuit Voltage       Voc(V) 38.3 38.5 38.7 38.9 45.8 46 46.2 46.4
Standard Test Condition(STC) Irradiance 1000W/, Module Temperature 25, Air Mass 1.5
Mechanical Parameters Solar Cell Type Polycrystalline 156.75*156.75 mm
Number of Cells 60 (6 x10) 72 (6 x12)
Dimension 1658 x 992 x 6 mm 1974 x 992 x 6 mm
Weight 23 KG 27 KG
Top Glass 2.5mm highly ransparent anti-reflective coating tempered glass
Bottom Glass 2.5mm textured tempered glass
Back EVA Sheet Color White
Frame Anodized aluminium
Junction Box IP67  / IP68
Cable 4mm, Positive wire 250mm,  Negative wire 150mm
Connector Original MC4 or compatible with MC4
Wind Load / Snow Load 2400Pa / 5400Pa




WARRANTY
10 years workmanship warranty.
25 years power output warranty (Including 90% power output for 10 years, 80% power output for 25 years)
30 years designed service life


QUALITY & SAFETY
ISO9001ISO14001ISO18001 certified factory, we provide world first class solar products for clients.
TUVCE, approved product
